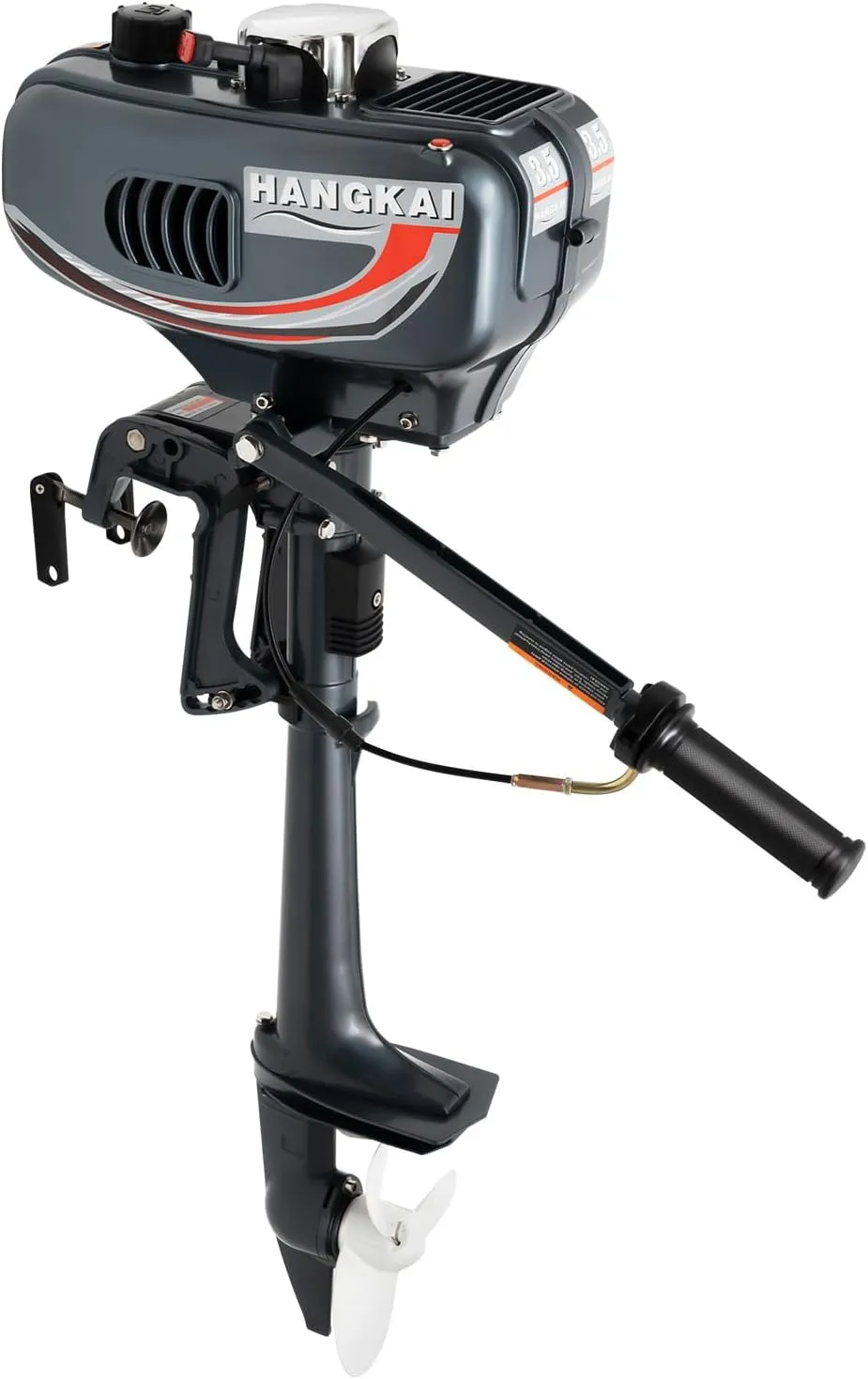

- Powerful Motor: This engine is a 3.5hp engine with a speed of up to 5000 rpm. The powerful power allows you to drive quickly and save a lot of time. It adopts a CDI ignition system, you can start the motor quickly and safely, making it easier to use and saving your energy.
- Good Cooling Effect: The heat sinkholes in the engine casing dissipate heat quickly to prevent burning after long periods of use. The semi-air-cooled system also makes it cool faster and reduces the failure rate. Low fuel consumption, efficient two-stroke motor provide you with a long endurance to meet the needs of short/long distance travel.
- Inline Propeller Design: The propeller of this item adopts an inline design, with high-speed engine that can more effectively play the outboard exhaust and thrust. It has a 180° steering function that allows you to reverse without shifting gears.
- Outboard Motor: The easy-to-open engine cover with a push-button latch for immediate access to the engine for you to check real-time conditions and make timely adjustments. This item has a tilt or lift function, and can be used for shallow water operation for your convenience.
- Application: It is suitable for boats weighing 100-200kg, with a speed of about 8-10km/h (The speed will vary depending on the environment, the water and the weight of the boat.)
Specification
Full Throttle Operating Range:4000-5000r/Min
Maximum Output: 2.5kw(3.5hp)
Speed:10km/H
Type: 2-Stroke
Ignition System: CDI System
Starting System: Manual Start
Staring Carburetion System: Choke Start
Propeller Mark: 7-1/45-a(Inch)
The Engine and the Propeller Ratio:2:1
Recommended Fuel: Regular Unleaded Gasoline
Fuel to Oil Ratio: 35:1
Gear Ratio: 27/13
Maximum Speed: 10 Km / H
Built-in Fuel Tank: 1.3L/0.29Gal
Fuel Consumption per Hour: 1.5L/0.33Gal
Short Shaft:40cm/15.75in
Overall Length: 92cm/36.22in
Overall Widteh: 36.5cm/14.37in
Overall Height:22cm/8.66in
Transom Height:42cm/16.54
Package Size: 90*36*43cm/35.43*14.17*16.93in
Package Weight: 12.18kg/26.85lbs
Adaptable Stern Height: 38-44cm/14.96-17.32inch
Measurement of the Stern: The Distance from the Place Where the Machine is Hung on the Stern to the Ground
Package Included
1x Outboard Motor
1x Funnel
1x Fuel Oil Mixing Bottle
1x Pump Impeller
1x Spark Plug
1x English Instruction
1x Installation Tool Kit
1x Starter
All Accessories for Assembly
Notes
1.Please read the attached instruction manual completely before use. And pay particular attention to the safety instructions included.
2.Please add gear oil to the gears before using the motor and replace gear oil after the run-in period(10 hours).(If you do not know how to handle this, please contact us). Our outboard motor doesn't with oil of gear, please prepare it by yourself.
3.Do not touch or remove electrical parts when starting or during operation. Keep hands, hair, and clothes away from the flywheel and other rotating parts while the engine is running.
4.Please don't start the motor on the bank. If you want to test the motor, it should be done in the river. Please don't use the motor when it stops coming out of water.
5.When there is no water coming out of the motor, please stop using it immediately, and then check whether the pump impeller or the water outlet is blocked.
6.We can only provide Ce certification, no other certification can be provided, thank you for your understanding.
7.Clean the outboard engine with fresh water after sailing in seawater or turbid water. Do not leave the outboard engine out until the cooling water is completely used up. Otherwise, the water cam will enter the cylinder through the exhaust port. This will cause engine failure.
8.Use up the gasoline in the fuel tank before storing for a long time. The engine should be stored in a dry and well-ventilated place, avoiding direct exposure to sunlight.
9.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
