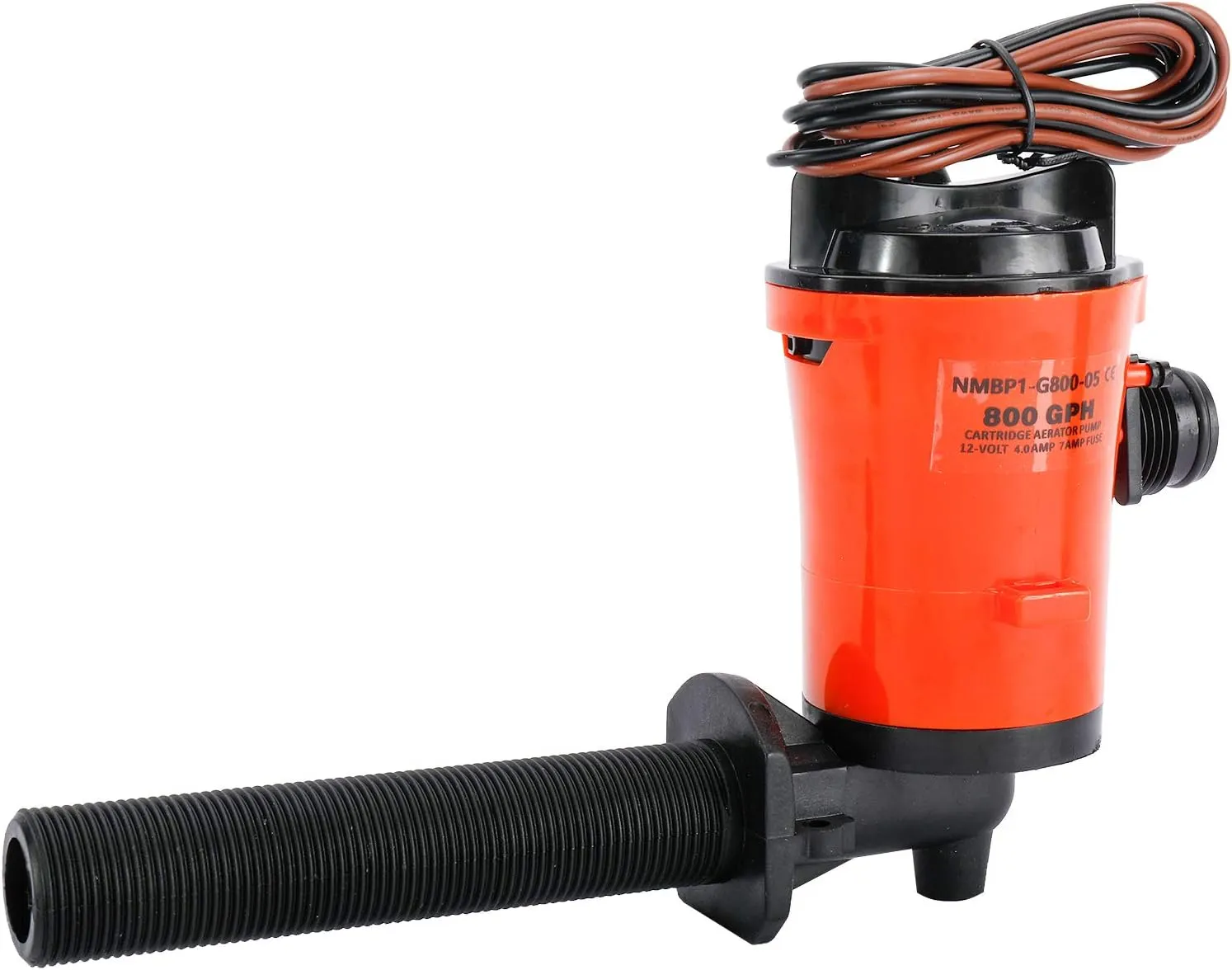

- The internal anti-airlock fins ensure even flow of water to your livewell Smaller profiles to fit in more confined spaces, The cartridge is easy to remove for cleaning or replacement.
- Pump is fully submersible and utilizes tin-coated, 16-gauge wire for safety 90° threaded intake, 125mm long Includes two different outlet hose tail configurations - Straight and 90°.
- Water cooled motors for long life, with anti airlock design and moisture tight seals. Stainless steel shafts suitable for fresh or salt water, Extra length for thicker transom.
- High-impact sturdy plastic housing Extremely efficient, very low current draw and offer high capacity output Water cooled long-life motors.
- Totally submersible and ignition protected, Ignition protection to protect the pump against high current Water/moisture tight seals Silent and vibrationless operation Anti-airlock protection.
Features:
Easy to install and remove for cleaning
Ignition protection to protect the pump against high current
Extremely efficient, very low current draw and offer high capacity output
Water cooled long-life motors
Stainless steel shafts suitable for fresh or salt water
High-impact sturdy plastic housing
Water/moisture tight seals
Silent and vibrationless operation
Anti-airlock protection
Specifications:
Voltage: 12V DC
Flow capacity: 800 Gallons per hour (3028 Liters per hour) - 51 Liters per minute Max. delivery head: 3.5 meters (height of vertical water flow up pipe)
Current draw: Only 2 Amp
Straight and 90° outlet hose
Hose Outlet: 19mm (3/4") tails
Dimensions: Length overall 207mm (8.15") x Cartridge diam 72mm (2.83")
Transom cutout hole: 27mm (1-1/16")
90° threaded intake, 125mm long
twin core wire lead, approx. 1m long
Approvals: CE
Applications:Typically used in boat hulls Livewells / bait tanks.
Note:
These pumps are designed for intermittent use only, NOT designed for continuous use
